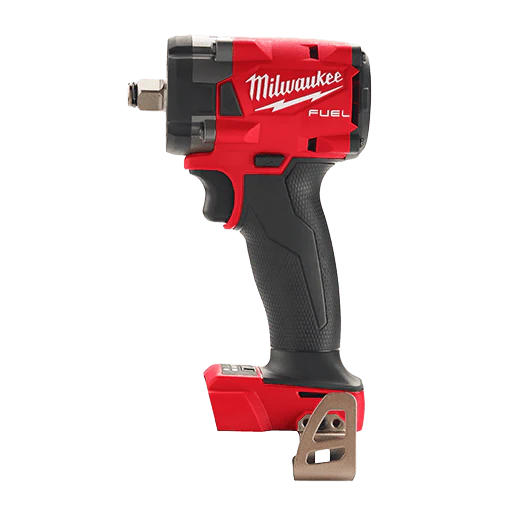

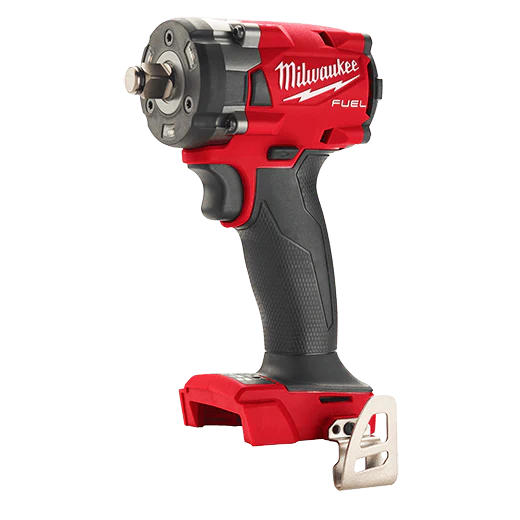

Milwaukee M18 FUEL™ 1/2 Compact Impact Wrench w/ Friction Ring (Tool Only), Model 2855-20*

Description

The MILWAUKEE® M18 FUEL™ 3/8" Compact Impact Wrench w/ Friction Ring is the most compact in its class, delivering the most access in tight spaces, up to 250 ftlbs of nut busting torque, and maximum workspace visibility.  The Milwaukee cordless impact wrench measures only 4.8" in length with a POWERSTATE™ Brushless motor to provide the power to remove stubborn fasteners, even in confined spaces. The Milwaukee 3/8" impact wrench has triLEDs that surround the anvil to deliver brighter light with fewer shadows. 4Mode DRIVE CONTROL™ offers greater precision with a range of preset RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUTOFF™ control applies no more than 20 ftlbs of torque for hand tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. REDLINK PLUS™ Intelligence electronics make these controls possible while ensuring maximum performance, protecting the tool against overloads, overheating, and over discharge.

***BATTERY AND CHARGER ARE NOT INCLUDED

Features

• Friction ring (hog ring) ensures quick and easy socket changes
• 4.9" in length provides most access in tight spaces
• The POWERSTATE™ Brushless motor delivers up to 250 ft-lbs. of nut-busting torque

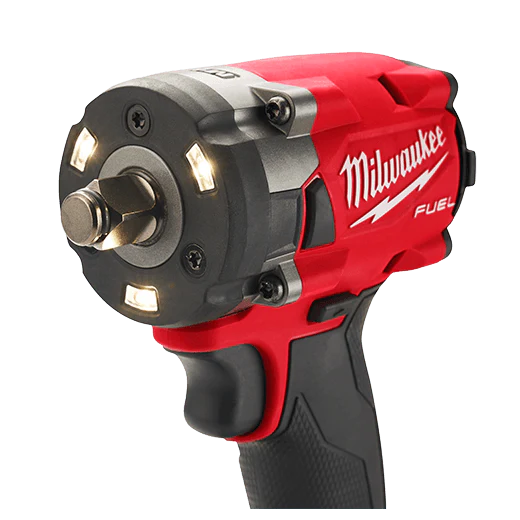

• Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
• 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
• AUTO SHUT-OFF™ control prevents over tightening and increases productivity by applying no more than 20 ft-lbs. of torque
• Bolt Removal control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops
• Mode 1 RPMs: 0-800; Mode 2 RPMs: 0-1,650; Mode 3 RPMs: 0-2,400; Mode 4 RPMs: 0-2,400
• Mode 1 IPMs: 0-1,000; Mode 2 IPMs: 0-2,400; Mode 3 IPMs: 0-3,500; Mode 4 IPMs: 0-3,500
• REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
• Works in up to to 69kV environments
• Compatible with all M18™ batteries & Chargers (NOT INCLUDED)

Technical Information

Height: 7.95"
Length: 4.9"
Weight: 2.4 lbs
Width: 2.56"
Power Source: Cordless
Nut Busting Torque: 250 (ft-lbs)
Fastening Torque: 250 (ft-lbs)
Anvil Type: 1/2" Square w/ Friction Ring
Battery System: M18

Document

Owner's Manual
