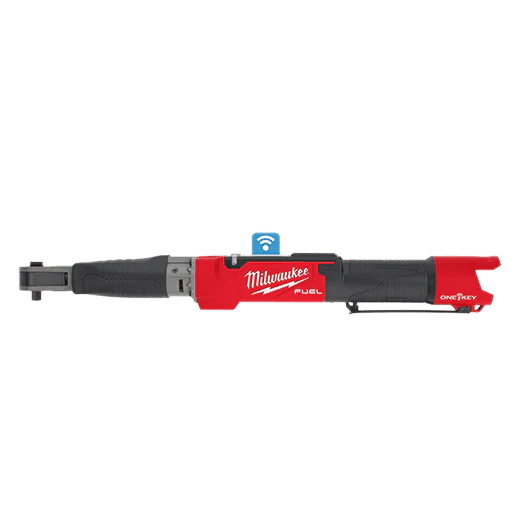

Milwaukee M12 FUEL™ 3/8 in. Digital Torque Wrench with ONEKEY™ (Tool Only), Model 2465-20*
Description
The M12 FUEL™ 3/8 in. Digital torque wrench with ONEKEY™ is the industry's first torque wrench with a motor, delivering increased productivity, precise torque accuracy, and user demanded reporting functionality. This tool delivers 50% faster installation time, replacing the hand tool or two tool installation process and providing more control to reduce the over torquing of fasteners. The 3/8 in. digital torque wrench provides 10 100ftlbs of torque range and accuracy within 2% of full scale for torque critical fasteners. This battery powered torque wrench is equipped with Milwaukee ONEKEY™ giving you the power to track, report, and manage your tool. This tool will record all of the fasteners that are saved and produce a downloadable report via ONEKEY™ for the necessary parties requiring the data. ONEKEY™ allows you to wirelessly connect to a smart phone to customize the tool settings, track its location, manage inventory, and lock the tool out for added security and protection for your investment.
***BATTERY AND CHARGER NOT INCLUDED
Features
- Delivers up to 50% Faster installation by replacing the hand tool or two tool installation process with the POWERSTATE™ brushless motor and torque wrench in one tool
- Precise Torque Accuracy of up to ±2% CW, ±3% CCW of full scale for torque critical fasteners
- Faster, More Productive Torque Reporting w/ ONE-KEY™ providing torque data and customizable reports for inspectors or owners
- ONE-KEY™ technology allows for customization, tracking, tool security, and inventory management
- Adjustable run-down torque to control the tools output torque via the motor to prevent over torque
- REDLINK PLUS™ Electronic Intelligence enables advanced communication between batteries and tools for unmatched performance, protection, and productivity.
- REDLITHIUM™ batteries deliver more work per charge and more work over the life of the battery (NOT INCLUDED)
- Four notification modes that the tool is reaching, meeting or exceeding the torque target (audible, LED, LCD, and vibratory)
- Four measurement modes (ft-lb, in-lb, Nm, Kgcm)
- Six pre-programmed languages including English, Spanish and French
- Durable design to withstand the most demanding jobsite environments
- Compatible with all M12™ batteries & chargers
- Certificate of tool calibration is valid for 12 months from the date of first
Technical Information
Length: 23.3"
Tool Warranty: 5 years
Weight: 5.5 lbs
Power Source: Cordless
Torque Range: 10-100 ft-lbs
Tool Accuracy: CW: +/-2% of Full Scale/ CCW: +/-3% of Full Scale (Range: 20% - 100% of Full Scale)
Ratcheting Angle: 4.5°
Anvil Size: 3/8” Ball Detent
RPM: 0 – 100
Available Presets: 15
Data Storage Capacity: 28,500 Events
Calibration: 1 Year or 5,000 Cycles
Measuring Units: ft-lbs, in-lbs, Nm, kg-cm
Torque Notifications: LED Lights, LCD Screen, Sound, Handle Vibration
