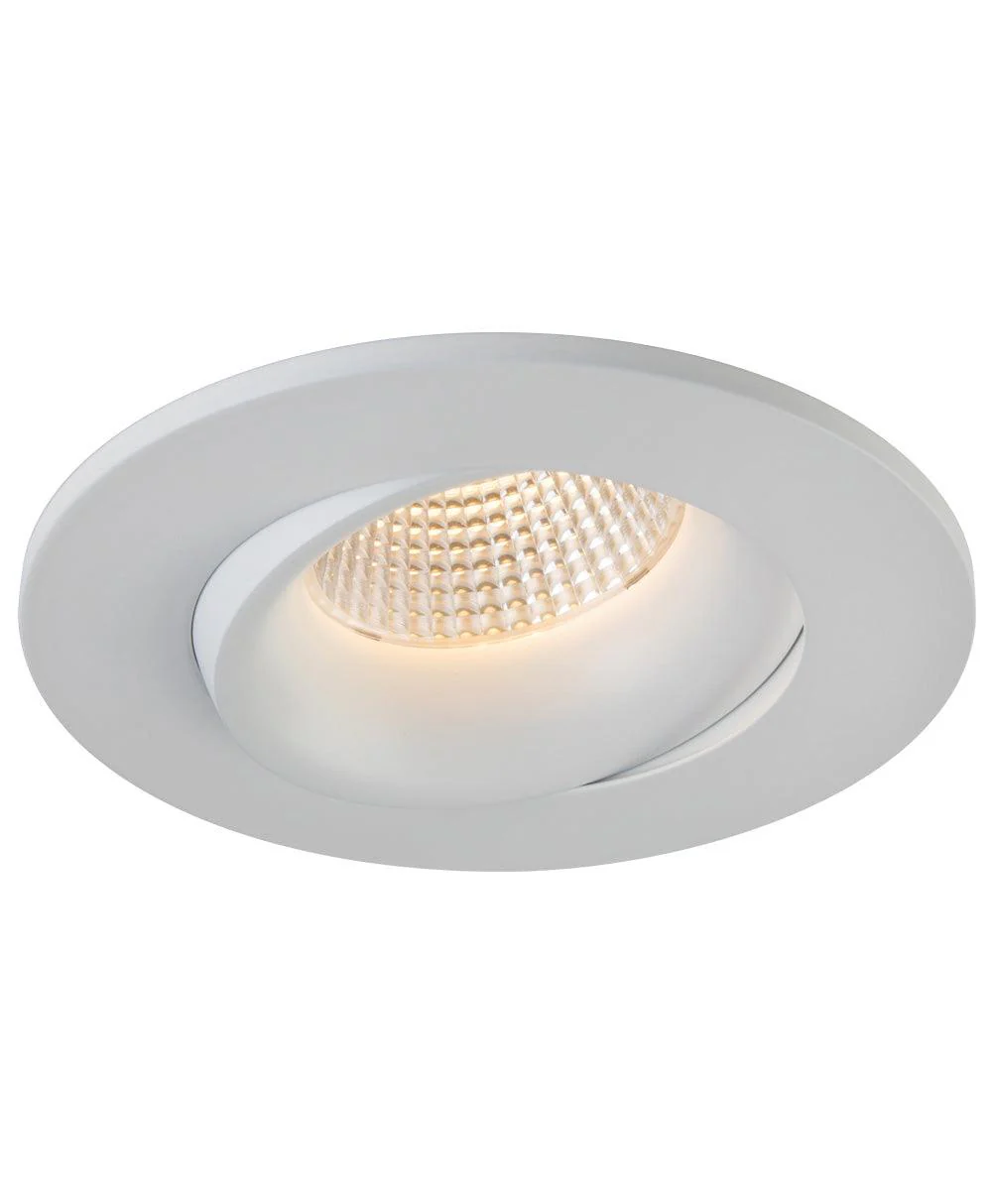

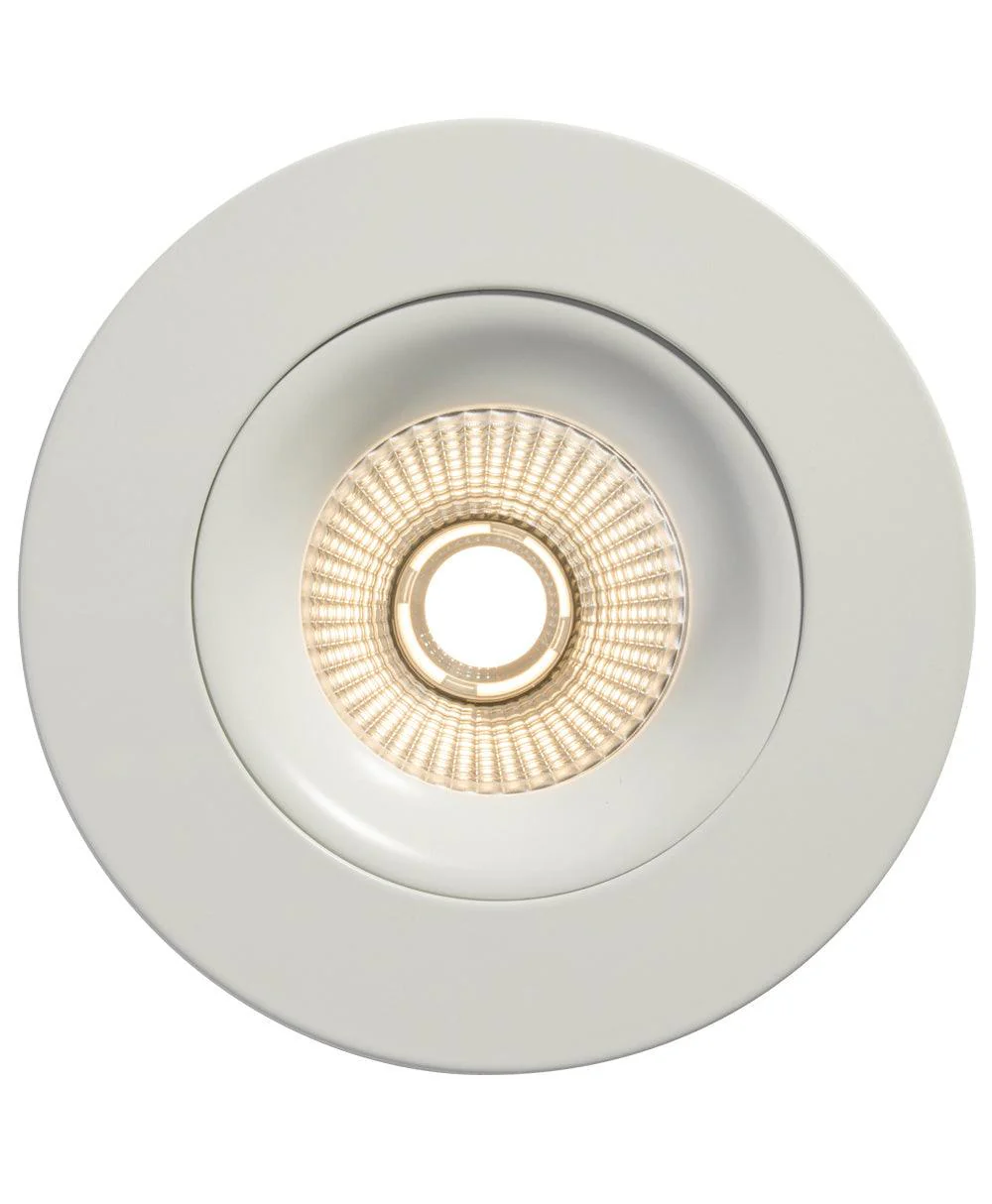

Liteline 3.5" Luna LED White Round Gimbal Recessed Fixture, Model RA35-12G-90WH*
Description
The RA35-12G is a 12 watt 3.5" round gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for damp locations.
Features

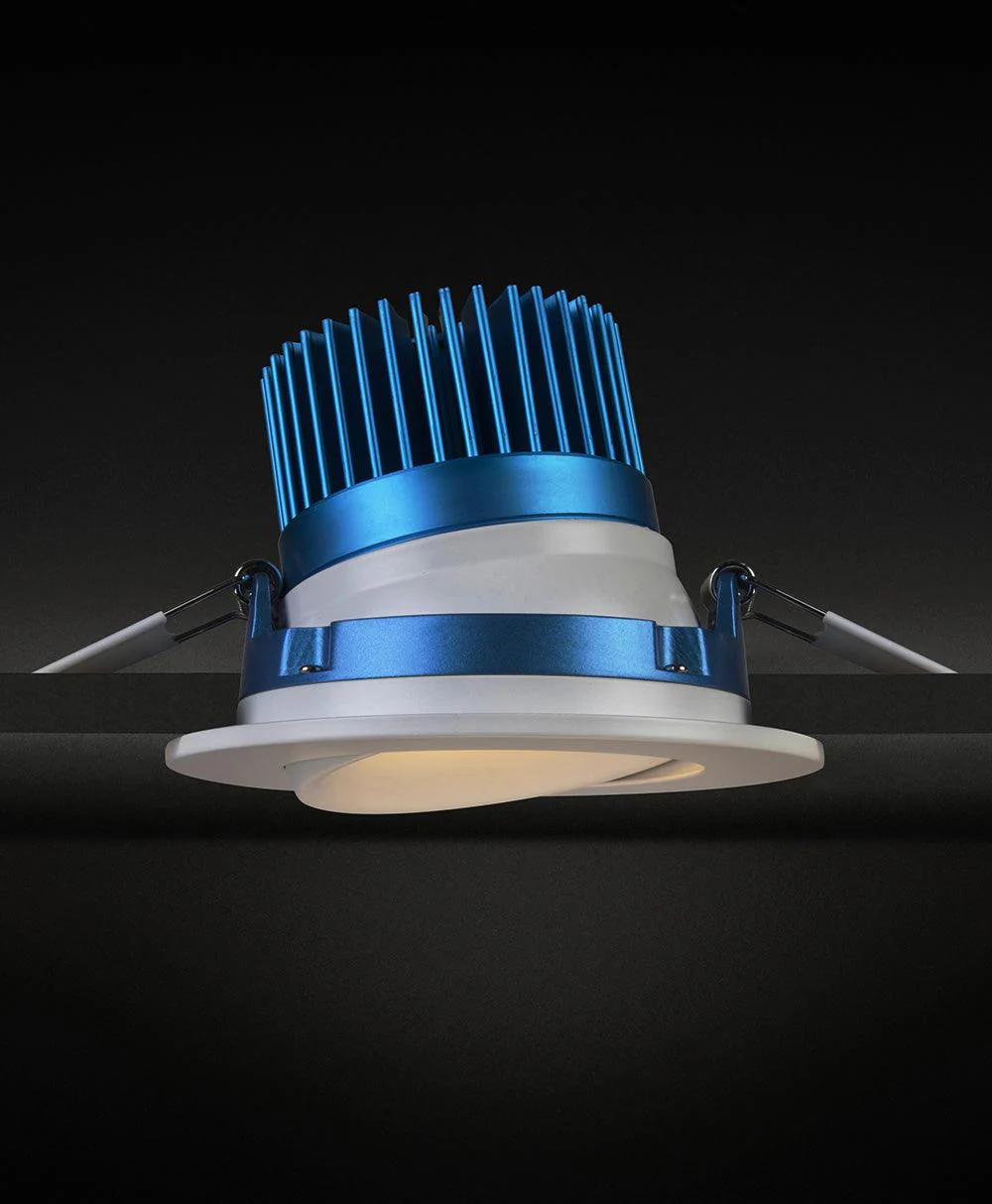

- Durable airtight aluminum body with adjustable gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source.
- This general application light fixture features a 12 watts LED module that maintains uniform intensity producing up to 850 Lumens; with a typical CRI of 90.
- 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers (See specification sheet for listing of compatible dimmers)
- The fixture lens provides 40° beam spread.
- Includes two spring loaded clips to attached to any ceiling material
- Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 16" cable from driver to fixture.
- Three "Quick connect" push-in terminals for fast and easy wiring.
- Operating temperature range from -20°C to 40°C (-4°F to 104°F)
- Suitable for damp locations. Approved for direct contact with insulation.
Technical Information
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 38°
CCT (color selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Class II: Yes
Color: White
CRI: 90+
Dimming: Yes
Dimming Tech: Forward/reverse-phase, TRIAC/ELV
Energy Star: Yes
Hole Cut: Ø 35⁄8" (92mm)
Input: 100-135V AC, 60Hz
Lumens: 767 / 789 / 828 / 850 / 796
Lumens per Watt: Up to 78
Power Factor: >0.90
Projected Life: 70% @ 50,000 hrs
Warranty: Lifetime
Wattage: 12W
