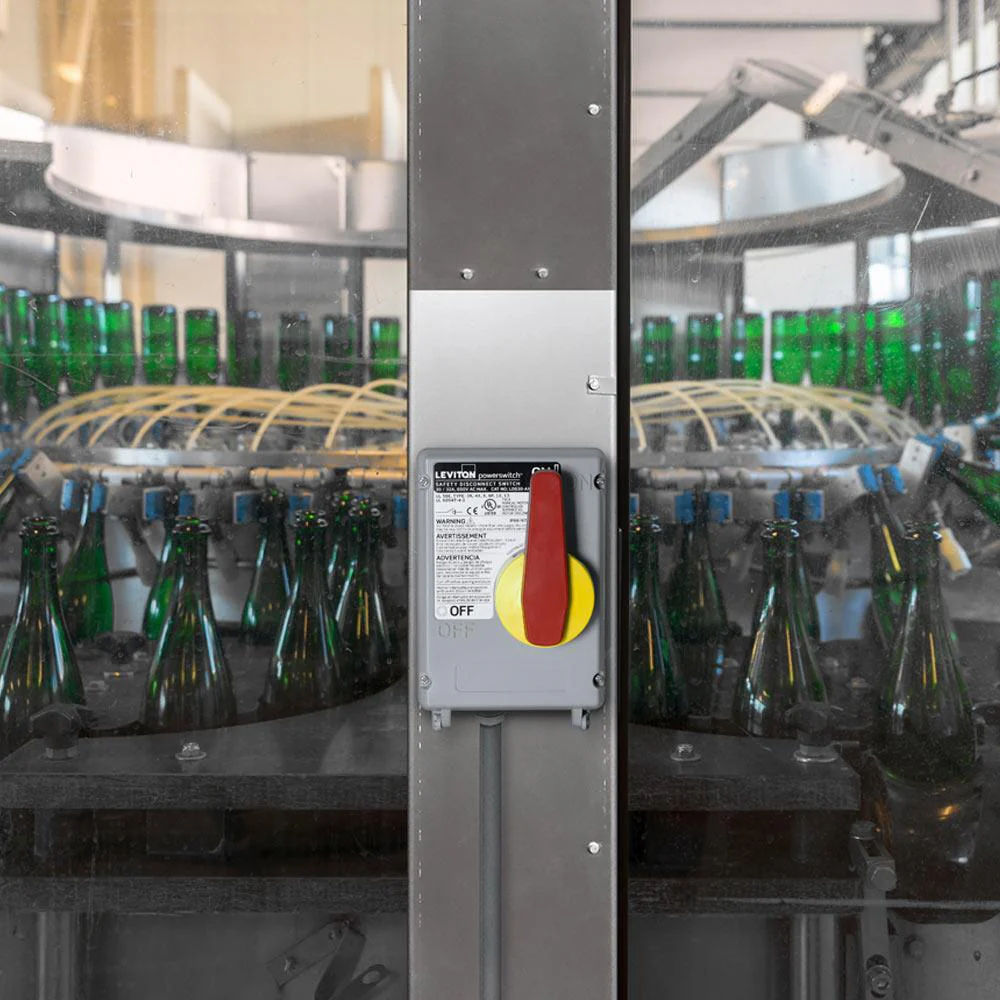

Leviton Non-Fused Safety Disconnect Switch in Watertight/Submersible Enclosure, Model LDS30AX*

Description

Benefits

30 Amp Non-Fused PowerSwitch Disconnect Switch, 600 Volt, Non-Metallic Enclosure

Technical Information

Specification sheet
Instruction sheet

Standards and Certifications
CE: CE Marked
IEC: 60529
ISO: 20653
Ingress Protection: NEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K
NEMA: 250
NOM: NOM-ANCE
NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
cULus: cULus UL60947-4-1A (Suitable as Motor Disconnect)

Electrical Specifications
Amperage: 30/32 A
Current Interrupting: Certified for full-rated current and voltage
Dielectric Voltage: 1000 V plus twice rated voltage for 1 minute
Endurance: 6,000 operating cycles at rated current and voltage
Short Circuit Current Rating: 10 kA; Fuse Type J; Fuse Size 60A
Voltage: 600 VAC
Environmental Specifications
Operating Temperature: -40°C to 75°C
UV Resistance: Exposed materials are UV stabilized

Material Specifications
Enclosure Material: PBT+PC
Enclosure Screws: Stainless Steel
Gasket: Silicone Rubber
Handle Material: PBT+PC with TPE Overmold
Mounting Feet: PBT+PC

Mechanical Specifications
Product ID: Ratings are permanently marked on device
Terminal Accom.: 18 - 8 AWG
Terminal ID: In accordance with UL and international conventions
