Klein Tools HVAC Electrical Test Kit, Model CL320KIT*

Description

Klein Tools HVAC Electrical Test Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester With Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple, and all batteries.

Features

• HVAC Kit with testers for the HVAC Professional: HVAC Digital Clamp Meter, Dual IR/Probe Thermometer, and Dual Range Non-Contact Voltage Tester with Flashlight
• Cat. No. CL320 HVAC Clamp Meter with TRMS technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature
• Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); measure surface temperature with Infrared Thermometer (DS ratio 8:1)
• Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures

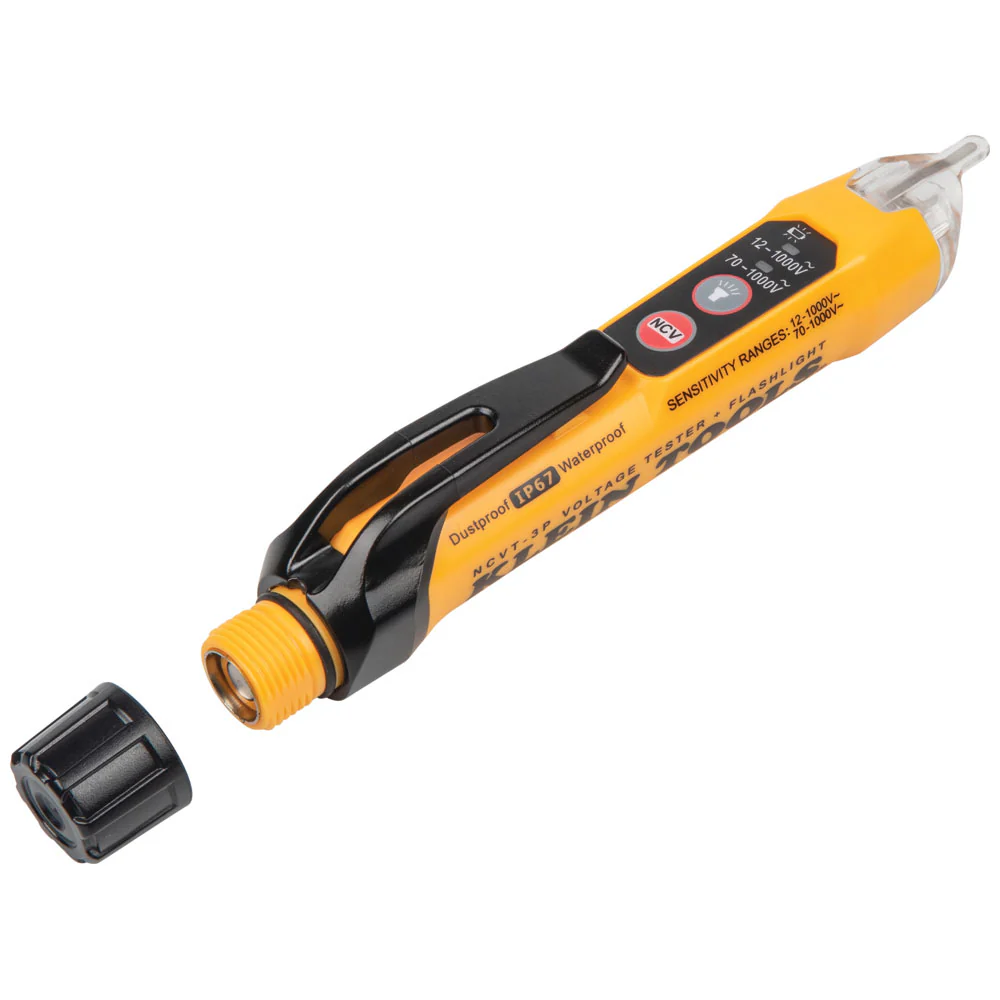

• Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
• Non-Contact Voltage Tester detects voltage with simultaneous visual and audible voltage indicators
• Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection
• IR07 Thermometer is not a medical device and is NOT intended for use on people or animals

Technical Information

Type: HVAC Testers
Application: HVAC Electrical and Temperature Testing
Special Features: Cat. No. CL320: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology; CAT. No. NCVT3P: NCVT with flashlight; Cat.No. IR07 Both IR and Probe Temperature
Material: ABS/Electronics
Batteries: 7 x AAA
Auto-Power Off: Yes
Jaw Size: 1.6'' (4.1 cm)
Drop Protection: 6.6' (2 m)
Display: 4000 Count Backlit LCD
Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
Voltage: Cat. No. CL320: 600V AC/DC; Cat. No. NCVT3P: 1000V AC
Frequency: 10 Hz to1 MHz
Current: 400 A AC
Capacitance: 4000 µF
Ohms (Resistance): 40MO
AC Voltage: 600V
DC Voltage: 600V
DC Polarity Indicator: Yes
DC Micro-Amp: 200 μA
Temperature Range: -40° to 1832°F (-40° to 1000°C)
Standard: Cat. No CL320: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified; Cat. No. NCVT3P: CAT IV 1000
Included: CL320 Digital Clamp Meter with Test Leads and Thermocouple; IR07 Dual IR and Probe Thermometer; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; Carrying Pouch; Instructions; and All Required Batteries
Overall Length: 8.45'' (21.5 cm)
Overall Height: 1.5'' (3.8 cm)
Overall Width: 3.5'' (8.9 cm)
Weight: 1.575 lb (0.7 kg)
