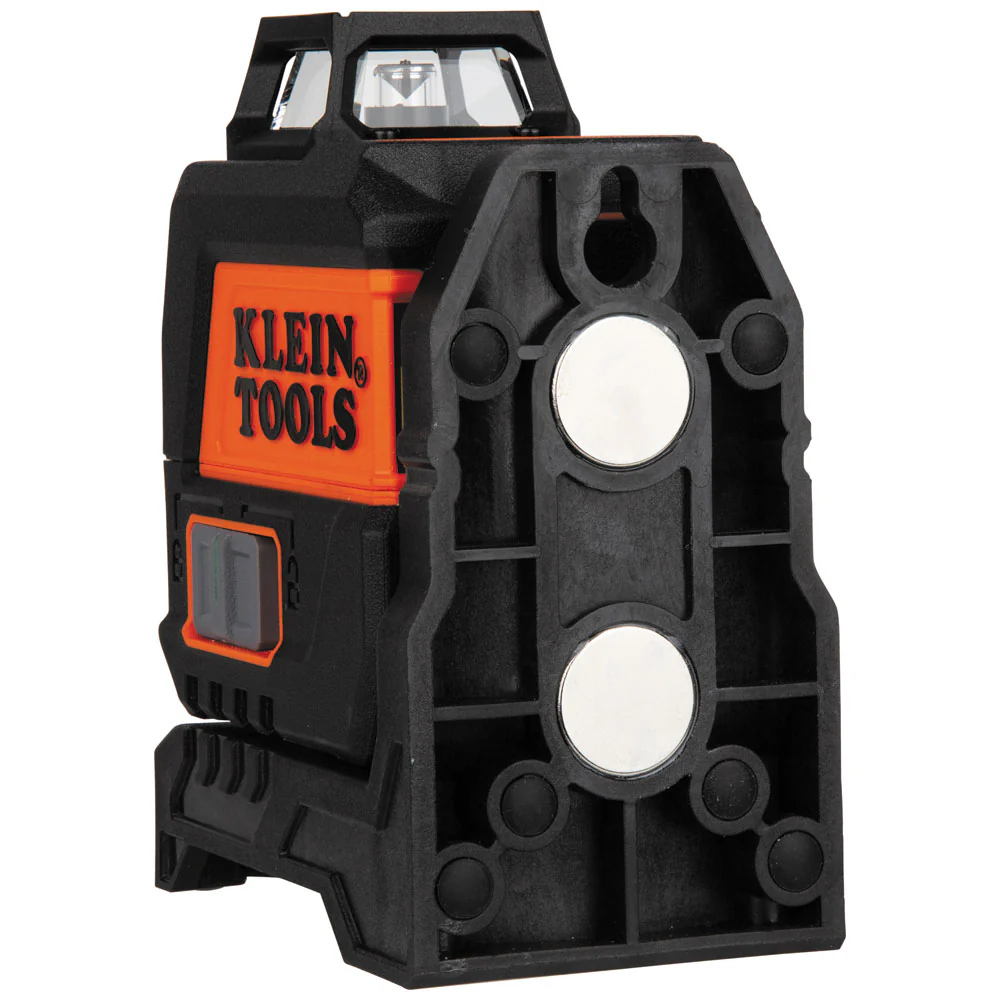

Klein Tools Compact Green Planer Laser Level, Model 93CPLG
Description
The Klein Tools’ Compact Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications. This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 508-530nm).
Features
- Rechargeable Self-Leveling Green Laser Level has 3 easy-to-read bright green 360-Degree laser planes with a working range of 100 feet (30.5 m); up to 2 times brighter than regular red beams
- Compact and lightweight design with lasers in 3 planes is easy to use in tight areas and to store when not in use
- High precision laser project clean lines with accuracy of 3/16-Inch at 30 feet (9.1 m); auto out-of-level detection flashes lasers when no longer level
- Tilt mode allows for the laser level to be turned on while the pendulum is locked for use at different angles
- Magnetic mounting bracket screws into integrated 1/4-Inch tripod mount
- More than 6-Hour runtime provides lasers power for all day use
- Durable overmold design that is IP54 rated protects the laser level from water and dust
Technical Information
Type: Self-Leveling Laser Level
Application: Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines
Special Features: Manual Tilt Mode, Out of Angle Notification, Battery Fuel Gauge
Material: PC+ABS+TPE
Batteries: Lithium-Ion
Laser Wavelength: 508-525 nm
Laser Safety: 21 CFR 1040.10 and 1040.11 Except for Conformance with IEC 60825-1 Ed. 3., as Described in Laser Notice No. 56, Dated May 8, 2019
Number of Beams: 3
Laser Color: Green
Plumb Laser: No
Indoor Range: 100' (30.5 m)
Outdoor Range: 100' (30.5 m)
Maximum Distance: 100' (30.5 m)
Display: No
Accuracy: 33' (10m)
Pulse Mode: No
Receiver: No
Magnet Type: Rare Earth - Neodymium
Drop Protection: 3' (1 m)
Ingress Protection: IP54: Water and Dust Resistant
Transit Locking Mechanism: Yes
Low Battery Alarm: Yes
Low Battery Indicator: Yes
Out-of-Level Indicator: Yes
Standard: Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019
Mounting Type: Magnetic Bracket, Tripod Mount
Bag or Case: Soft Case
Included: Laser Level, Soft Carrying Case; Instruction Manual; Mounting Clamp
Overall Length: 4.2'' (10.7 cm)
Overall Height: 4'' (10.2 cm)
Overall Width: 3.2'' (8.1 cm)
Weight: 19.6 oz (556 g)
Battery Life: 6 hr
