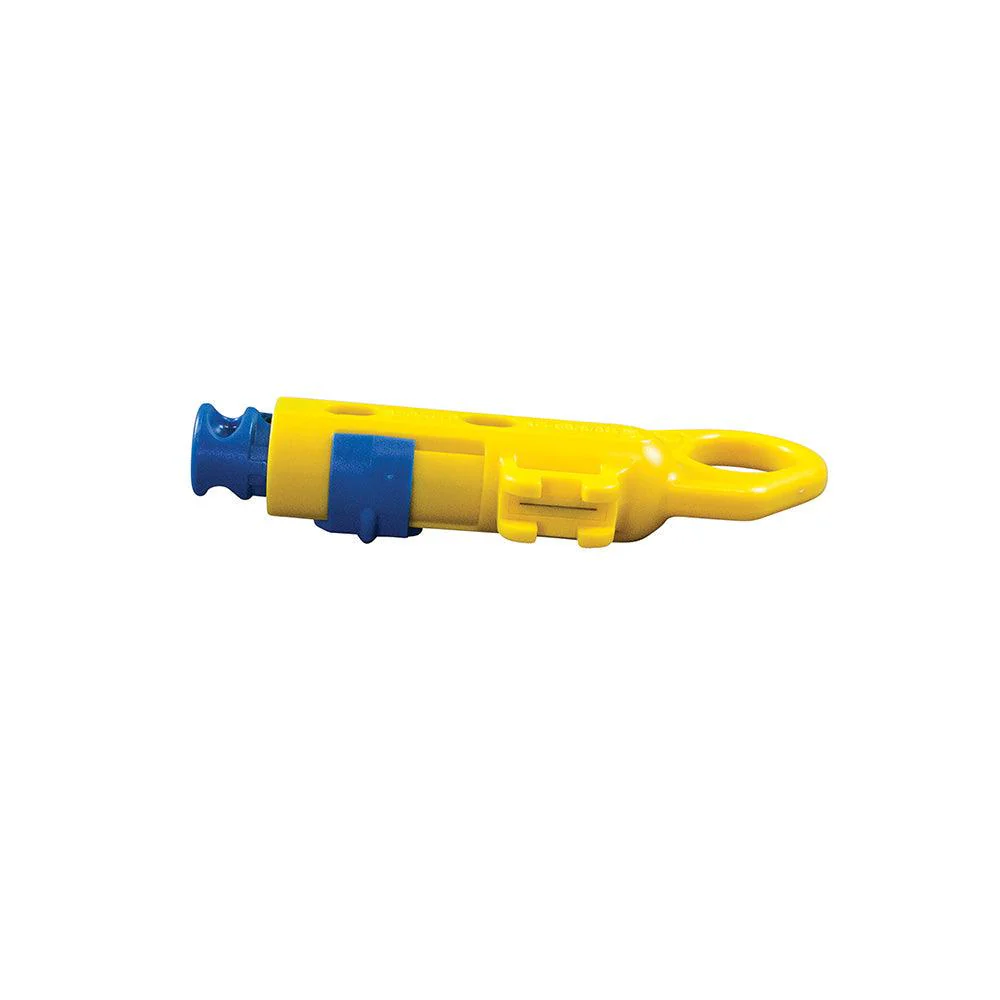

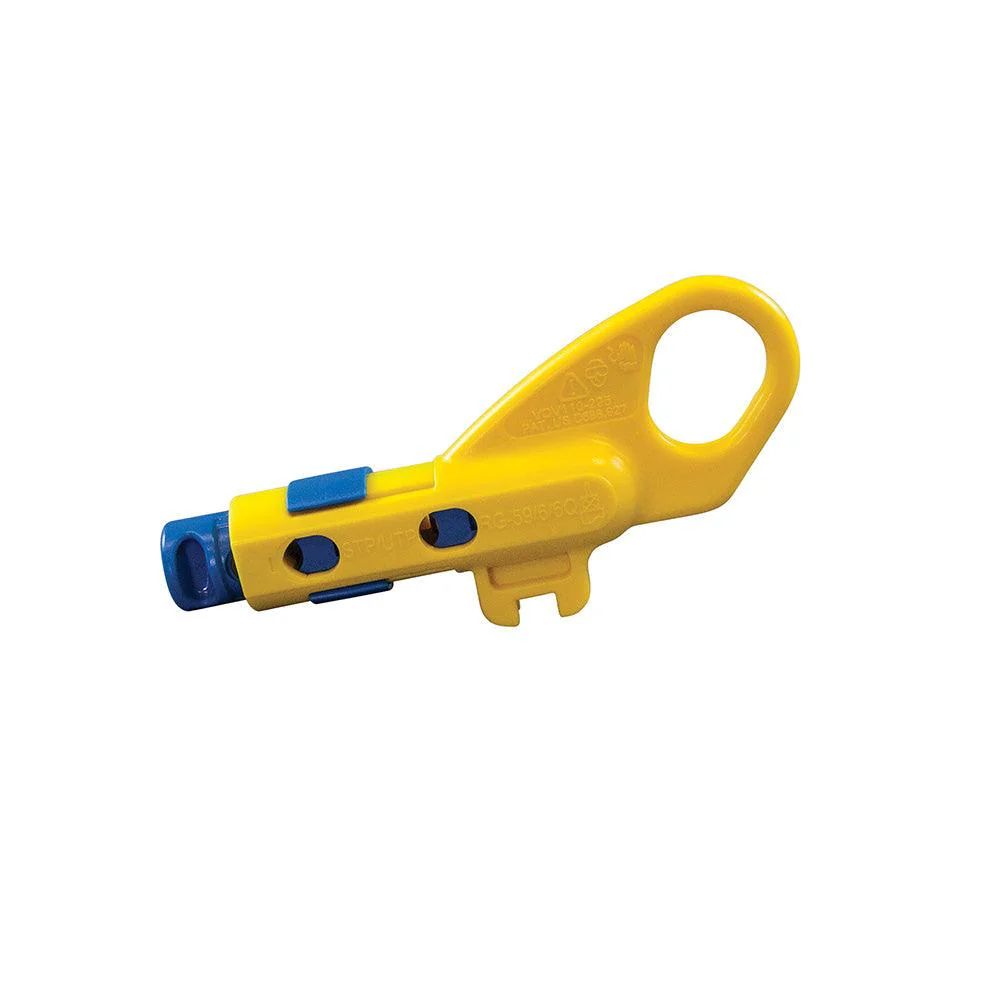

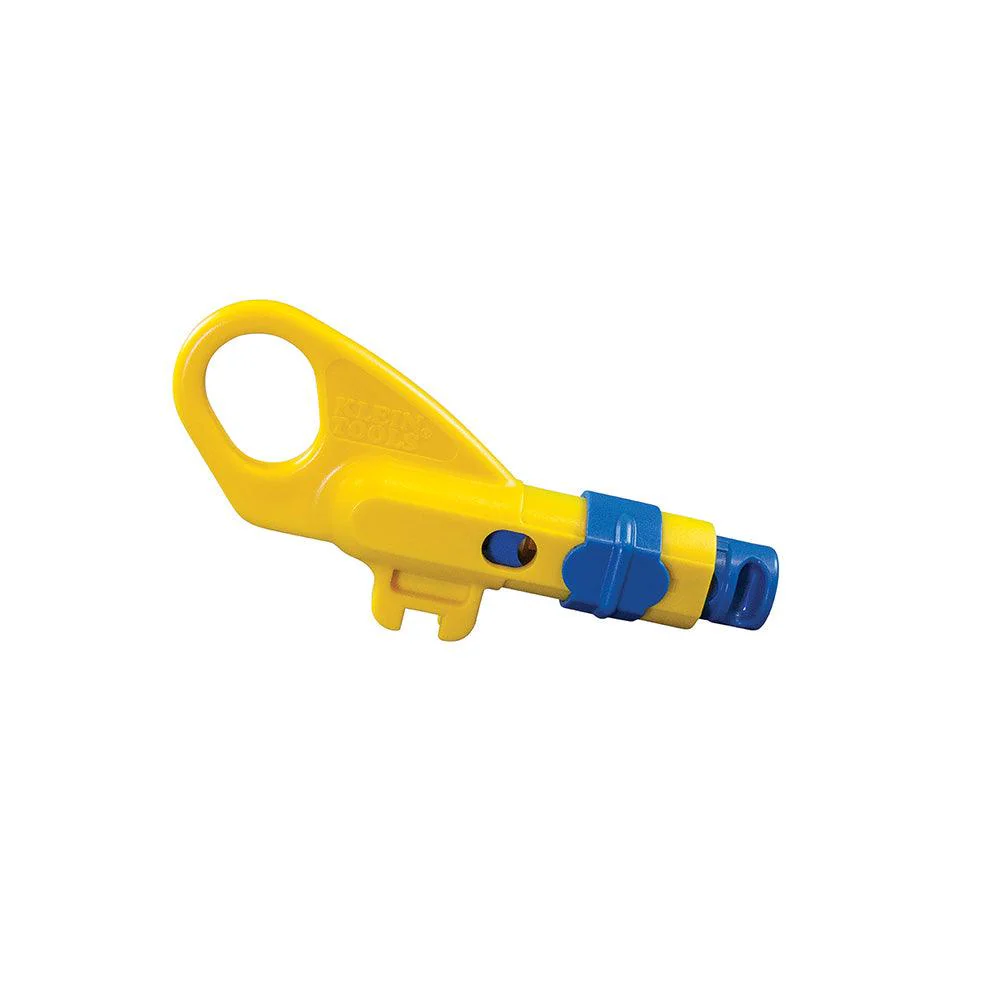

Klein Tools Combination Radial Stripper - RG59, RG6/6Q, CAT3, CAT5 and CAT6, Model VDV110-295

Description

Klein Tools Combination Radial Stripper works on both twisted pair and coaxial cables. The precision, high-carbon steel blades automatically adjust to twisted pair cable diameters and won't damage internal conductors. Consistent cuts won't nick the inner sheaths. Klein's exclusive sliding depth gauge pre-measures coax cable for fast, accurate and repeatable stripping every time.

Benefits

• Easily and cleanly strips both coaxial and twisted-pair cable including RG59, RG6/6Q, CAT3, CAT5 and CAT6 sizes
• Precision high-carbon steel blades automatically adjust to twisted pair cable diameters; won't damage internal conductors
• Easy debris clean-out
• Finger loop for smooth, easy rotation
• Premium tool features a slide depth gauge to pre-measure coax cable for quick, precise and repeatable 5/16-Inch (7.9 mm) and 1/4-Inch (6.4 mm) strips
• Additional external blade in a structured design allows user to slit wire jacket for mid-span access or to open lengthwise
• Also works with with RG6Q quad shield (dual shield) cable

Technical Information

Type: Radial Stripper
Application: Cable Preparation
Cable Type: RG59, RG6/6Q; CAT3, CAT5/5e, CAT6/6A
Levels: Coaxial: 2, Twisted Pair: 1
Strip Dimensions: Coaxial: 0.3125'' and 0.250'' (7.94 and 6.35 mm), Twisted Pair: Variable
Overall Length: 5.25'' (13.3 cm)
Handle Color: Yellow/Blue
Weight: 1.5 oz (43 g)
