Intermatic Clear Vertical Plastic In-Use Weatherproof Cover, Double Gang 2.25" Deep, Model WP1220C
Intermatic Clear Vertical Plastic In-Use Weatherproof Cover, Double Gang 2.25" Deep, Model WP1220C
Description

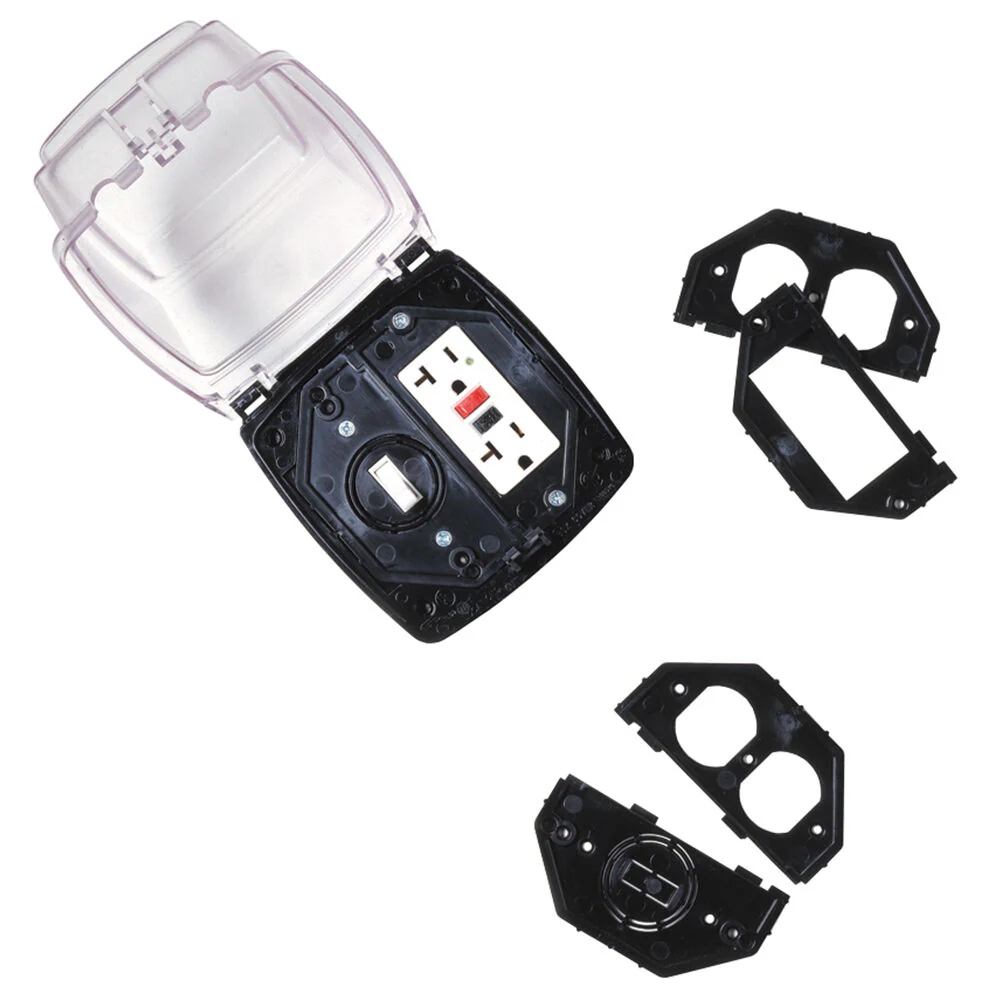

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.
Features
- Complies with 2020 NEC Article 314.15 for damp and wet locations
- UL Certified for Type 3R outdoor enclosures
- Meets requirements for cold impact testing: -60° F (-51° C)
- Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
- 1⁄8" (3 mm) thick neoprene gasket with slits for mounting screws
- Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations)
- Max cord size: (2) #14 AWG or (1) #12 AWG, WP1250 (2) #14 AWG or (1) #10 AWG
- Warranty: 1-year limited
Technical Information
Number of Included: Inserts 6
Insert Types Included: WP217
Hinge Direction: Vertical
Is Extra-Duty Rated: No
Product Dimensions (H x W x D) in: 5 1/2 x 5 x 2 1/4 in
Accepted Cord Size: Max 2x14 AWG; 1x12 AWG
Box Type: Double
Color: Clear
Weatherproof Cover Material: UV Stabilized Plastic
Country of Origin (Intermatic): MEXICO
Warranty Period: 1-Year limited
