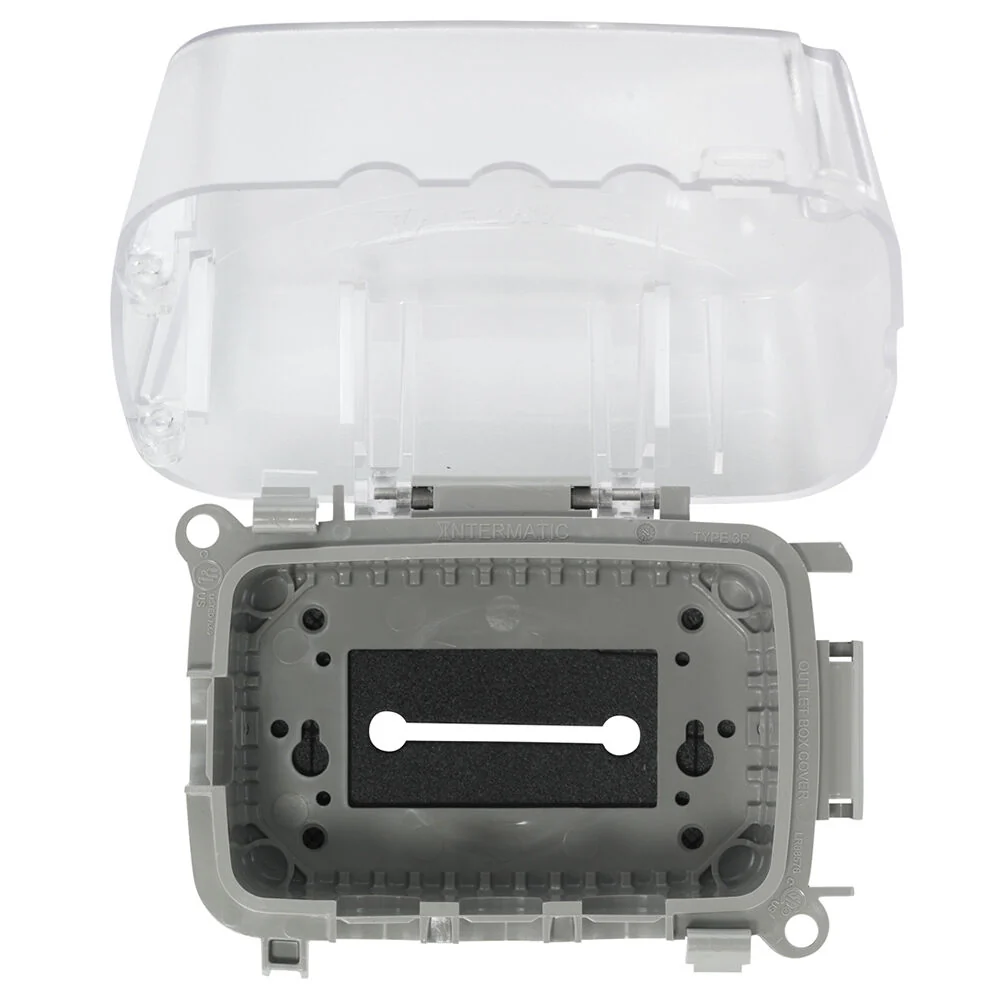

Intermatic Clear Vertical/Horizontal Extra-Duty Plastic In-Use Weatherproof Cover, Single Gang 3.6255" Deep, Model WP5110C
Intermatic Clear Vertical/Horizontal Extra-Duty Plastic In-Use Weatherproof Cover, Single Gang 3.6255" Deep, Model WP5110C
Description
Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.
Features
- Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
- CEC Article 26-702 Compliant
- UL Certified for Type 3R outdoor enclosures
- Meets requirements for cold impact testing: -60° F (-51° C)
- Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
- 1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws
- Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank
- Impact rated: 12 lbf. impact test to ensure cover remains intact
- Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
- Warranty: 1-year limited
Technical Information
Number of Included Inserts: 3
Insert Types Included: WP17
Hinge Direction: Vertical/Horizontal
Is Extra-Duty Rated: Yes
Product Dimensions (H x W x D) in: 6 1/3 x 4 2/3 x 3 5/8 in
Accepted Cord Size: Max 2x14 AWG; 1x12 AWG
Box Type: Single
Color Clear: Gray
Weatherproof Cover Material: UV Stabilized Plastic
Country of Origin (Intermatic): MEXICO
Warranty Period: 1-Year limited
