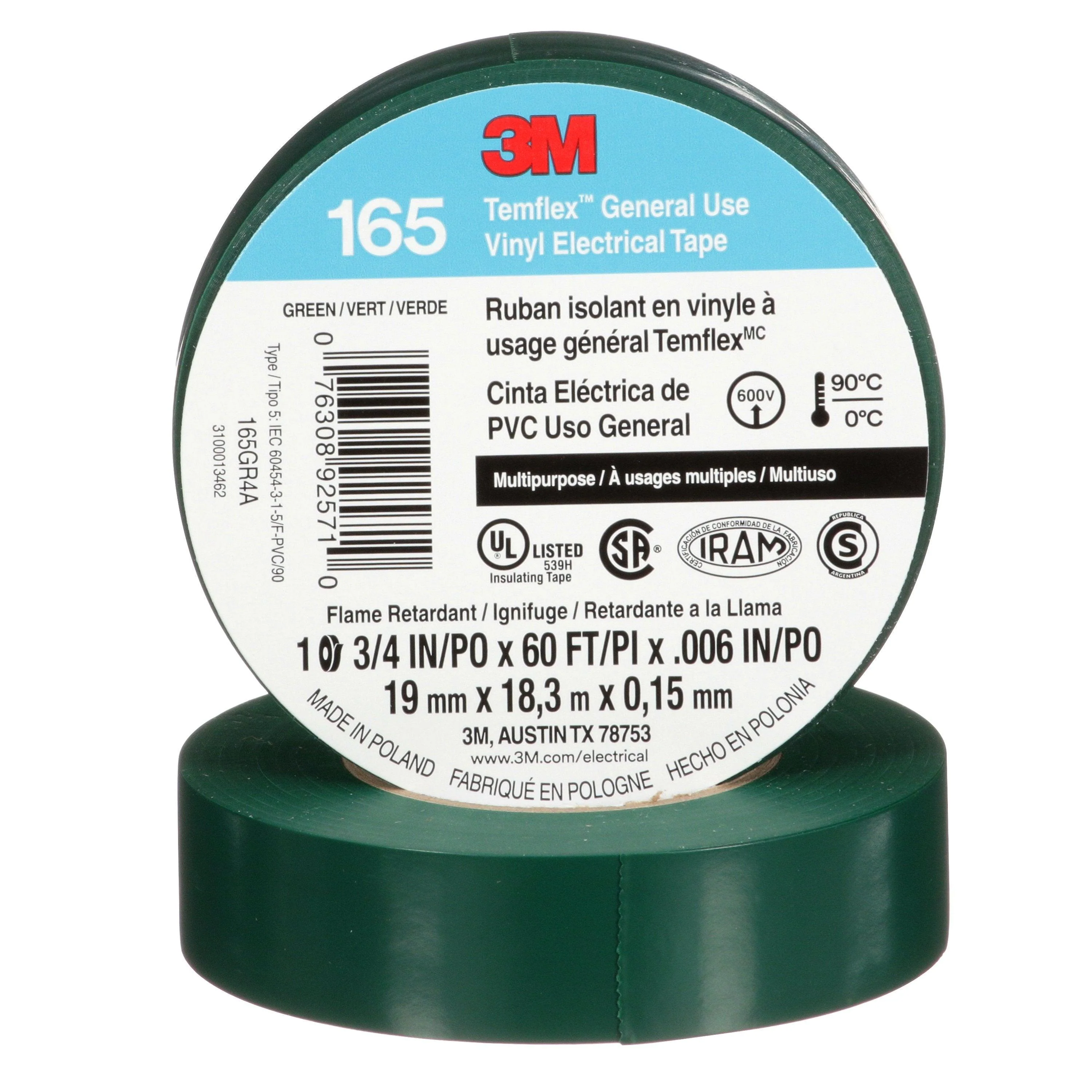

3M Temflex™ General Use Vinyl Electrical Tape, Green, Model 165GR4A

Description

The 3M™ Temflex™ Vinyl Electrical Tape is a good quality, multi-purpose vinyl insulating tape. This tape has great resistance to moisture and varying weather conditions. It is a polyvinyl chloride (PVC) tape that is flame-retardant and conformable. This tape provides great mechanical protection with minimum bulk. The 3M™ Temflex™ Vinyl Electrical Tape is a UL Listed and CSA Certified “Insulating Tape.”

Features

• Resists abrasion, moisture, alkalis, solvents and acids
• Flame-retardant and helps inhibit the corrosion of electrical conductors
• Made of durable PVC
• Compatible with rubber and synthetic splicing compounds
• Withstands a temperature range of 32 to 194 °F (0 to 90 °C)
• UL Listed, CSA and VDE Certified

Technical Information

Adhesive Type: Rubber
Applications: Insulation
Backing (Carrier) Material: PVC
Elongation at Break: 200.0 %
ETIM Class 8.0: EC000128
Maximum Operating Temperature (Celsius): 90.0 °C
Maximum Operating Temperature (Fahrenheit): 194.0 °F
Minimum Operating Temperature (Celsius): 0.0 °C
Minimum Operating Temperature (Fahrenheit): 32.0 °F
Overall Length (Imperial): 60.0 ft
Overall Length (Metric): 18.0 m
Overall Width (Imperial): 0.75 in
Overall Width (Metric): 19.0 mm
Product Colour: Green
Tape Grade: General Use
Total Tape Thickness without Liner (Imperial): 0.006 in
Total Tape Thickness without Liner (metric): 0.15 mm
Voltage Rating: 600 V

Document

Article Information Sheet
