3M Temflex General Use Vinyl Electrical Tape, Black, 3/4in x 60ft, Model 175BK4A

3M Temflex General Use Vinyl Electrical Tape, Black, 3/4in x 60ft, Model 175BK4A

Description

3M™ Temflex™ Vinyl Electrical Tape 175 is a 7-mil thick, high-performance general-purpose vinyl insulating tape. It is designed to perform in ambient temperatures up to 194°F (90°C).

The 3M™ Temflex™ Vinyl Electrical Tape 175 is conformable for cold weather application down to 19°F (-7°C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The 3M™ Temflex™ Vinyl Electrical Tape 175, with it's combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk.

Features

  • Resists abrasion, moisture, alkalis, solvents and acids
  • Flame-retardant and helps inhibit the corrosion of electrical conductors
  • Made of durable PVC
  • Compatible with rubber and synthetic splicing compounds
  • Withstands a temperature range of 19 to 194°F (-7 to 90 °C)
  • UL Listed and CSA Certified

Technical Information

Adhesive Type: Rubber
Applications: Insulation
Backing (Carrier) Material: PVC
Brand: Temflex™
Elongation at Break: 200.0 %
Maximum Operating Temperature (Celsius): 90.0 °C
Maximum Operating Temperature (Fahrenheit): 194.0 °F
Minimum Operating Temperature (Celsius): -7.0 °C
Minimum Operating Temperature (Fahrenheit): 19.0 °F
Overall Length (Imperial): 60.0 ft
Overall Length (Metric): 18.0 m
Overall Width (Imperial): 0.75 in
Overall Width (Metric): 19.0 mm
Product Colour: Black
Tape Grade: General Use
Total Tape Thickness without Liner (Imperial): 0.007 in
Total Tape Thickness without Liner (metric): 0.177 mm
Voltage Rating: 600 V
$0.43

Original: $1.23

-65%
3M Temflex General Use Vinyl Electrical Tape, Black, 3/4in x 60ft, Model 175BK4A—

$1.23

$0.43
Product image 1
Product image 2
Product image 3

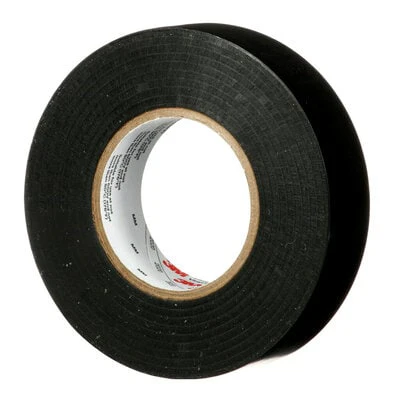

Product image 4

Description

Description

3M™ Temflex™ Vinyl Electrical Tape 175 is a 7-mil thick, high-performance general-purpose vinyl insulating tape. It is designed to perform in ambient temperatures up to 194°F (90°C).

The 3M™ Temflex™ Vinyl Electrical Tape 175 is conformable for cold weather application down to 19°F (-7°C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The 3M™ Temflex™ Vinyl Electrical Tape 175, with it's combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk.

Features

  • Resists abrasion, moisture, alkalis, solvents and acids
  • Flame-retardant and helps inhibit the corrosion of electrical conductors
  • Made of durable PVC
  • Compatible with rubber and synthetic splicing compounds
  • Withstands a temperature range of 19 to 194°F (-7 to 90 °C)
  • UL Listed and CSA Certified

Technical Information

Adhesive Type: Rubber
Applications: Insulation
Backing (Carrier) Material: PVC
Brand: Temflex™
Elongation at Break: 200.0 %
Maximum Operating Temperature (Celsius): 90.0 °C
Maximum Operating Temperature (Fahrenheit): 194.0 °F
Minimum Operating Temperature (Celsius): -7.0 °C
Minimum Operating Temperature (Fahrenheit): 19.0 °F
Overall Length (Imperial): 60.0 ft
Overall Length (Metric): 18.0 m
Overall Width (Imperial): 0.75 in
Overall Width (Metric): 19.0 mm
Product Colour: Black
Tape Grade: General Use
Total Tape Thickness without Liner (Imperial): 0.007 in
Total Tape Thickness without Liner (metric): 0.177 mm
Voltage Rating: 600 V
